We are now aware that the Thermic lances are steel pipes which when heated in the presence of Oxygen generates extreme temperature of up to 4000˚C. These lances are generally used for cutting heavy metals, skull shaped metals, stainless steel, nickel, concrete, etc. Commonly, the Thermic Lance are of two types -Type T (Double Tube Pipes) and Type W (Fully Packed Wires).

Today we are going to introduce a special type of the Thermic Lance made by Daiwa Lance International – Half Wired Thermic Lance.

Introduction – Thermic Lance with half wires.

Source: Daiwa Lance International.

While introducing the Thermic Lances to our customers we have found that some customers prefer HALF WIRED THERMIC LANCES for several applications and special specifications.

Below are some points which will able to help us to find out what are the difficulties faced by the workers/ operators while using Full Wired Thermic Lances at the working site and also how these difficulties can be solved through easy operation.

Difficulties faced by workers/ operators:

• As the working areas are hot and quite dangerous it is difficult for the workers/ operators to maneuver near the site.
• A minimum safe distance is to be maintained by the workers/ operators at the working site.
• Full wired Thermic lance are too heavy to operate and handle.

Using Half wired Thermic Lance and its easy operation:

• Putting the wire only half-way within the Thermic Lances and using it from edges to half.
• It is lighter in weight which becomes easy to handle by the workers/ operators.
• Saving waste materials. As there is no need of discarding the unused wire thus it saves the environment.

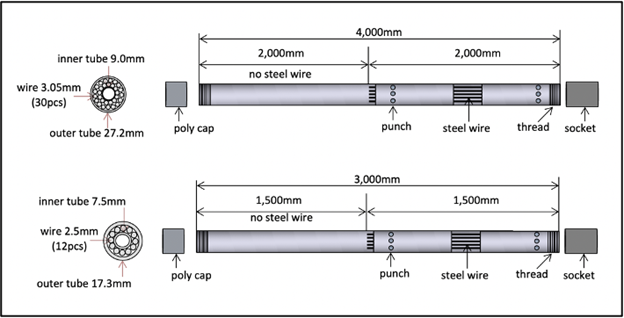

The image below refers the difference between full and half wired Thermic Lances of OD 27.2mm and OD 17.3mm:

Weight difference:

OD 27.2mm x 4m: half wired – 10.5kg; Full wired – 14.7kg

OD 17.3mm x 3m: half wired – 3.40kg; Full wired – 4.25kg

For more details about this product, please feel free to contact us at

sales@daiwaanayasteel.com

Daiwa Anaya Steel is part of Anaya Steel, LLC (US parent company). Our group has over 30 years of experience in steel products mainly:

• Specialized steel hardware – punched, pressed, galvanized, powder coated.
• Steel pipes and tubing – specialized, color coated, galvanized and structural.
• Our Lance pipes are produced by Daiwa Lance International in Vietnam.
